Two-way Piggyback AGV

Automatic guided transport vehicle-introduction

Automated Guided Vehicle-AGV (Automated Guided Vehicle) refers to a transport vehicle equipped with electromagnetic or optical automatic guidance devices that can travel along a prescribed guide path, with safety protection and various transfer functions. AGV belongs to The category of Wheeled Mobile Robot (WMR-Wheeled Mobile Robot). A truck that does not require a driver in industrial applications, and uses a rechargeable battery as its power source. Generally, it can be controlled through a computer to control its travel route and behavior, or use an electromagnetic path-following system to set up its travel path. The electromagnetic track is glued to the floor, and the driverless follows the electromagnetic track. The message carries the transporter that moves and moves.

The automatic guided transport vehicle-the guidance method of AGV

1. Electromagnetic induction guidance. The electromagnetic field formed by the low-frequency guide cable and the electromagnetic sensing device are used to guide the operation of the unmanned guided vehicle.

2. Laser guidance. The laser scanner is used to identify several fixed signs set in its range of motion to determine its coordinate position, thereby guiding the operation of the AGV.

3. Magnet-gyro guidance. Use a special magnetic position sensor to detect small magnets installed on the ground, and then use gyroscope technology to continuously control the running direction of the unmanned truck.

Let robot smarter service for world.

AGV customized electric remote control rail transfer car is designed for transporting heavy cargoes or equipment from one bay to anther in factory, It can be used indoor or outdoor the fields include metallurgy,foundry, new factory construction and ship building and soon with different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.

Product introduction

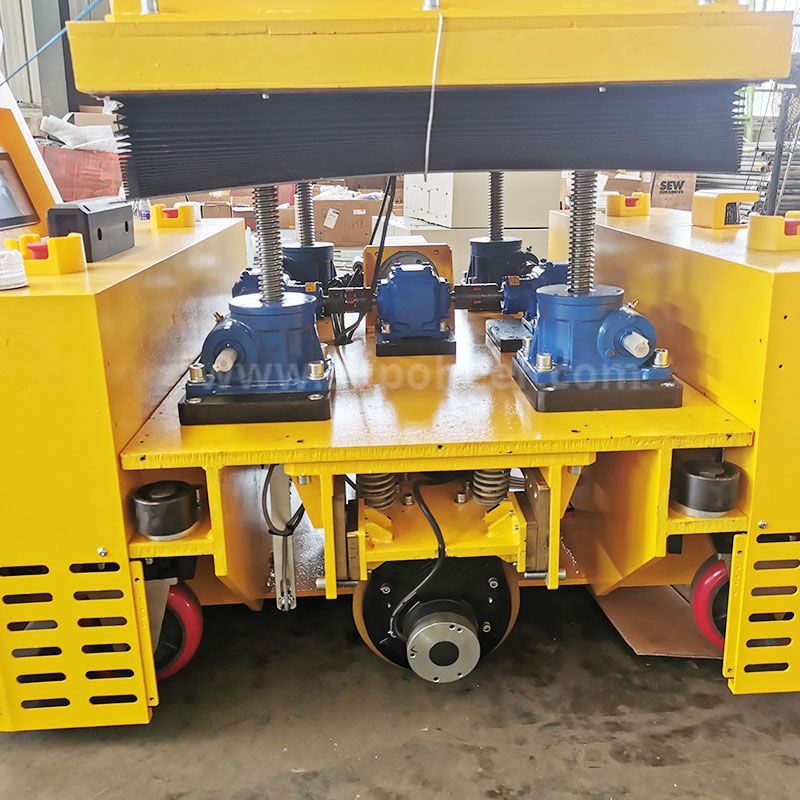

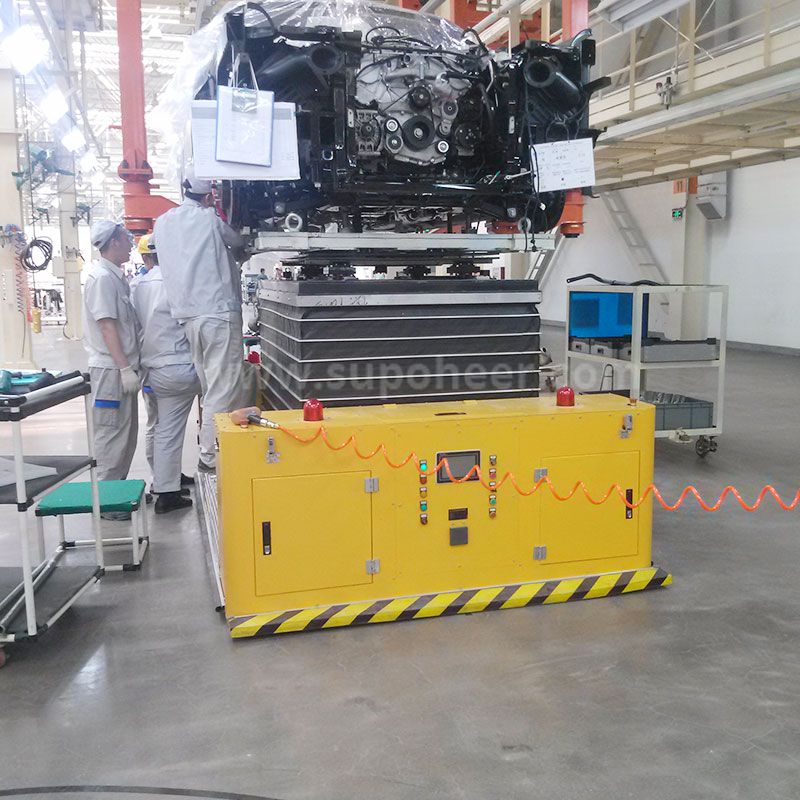

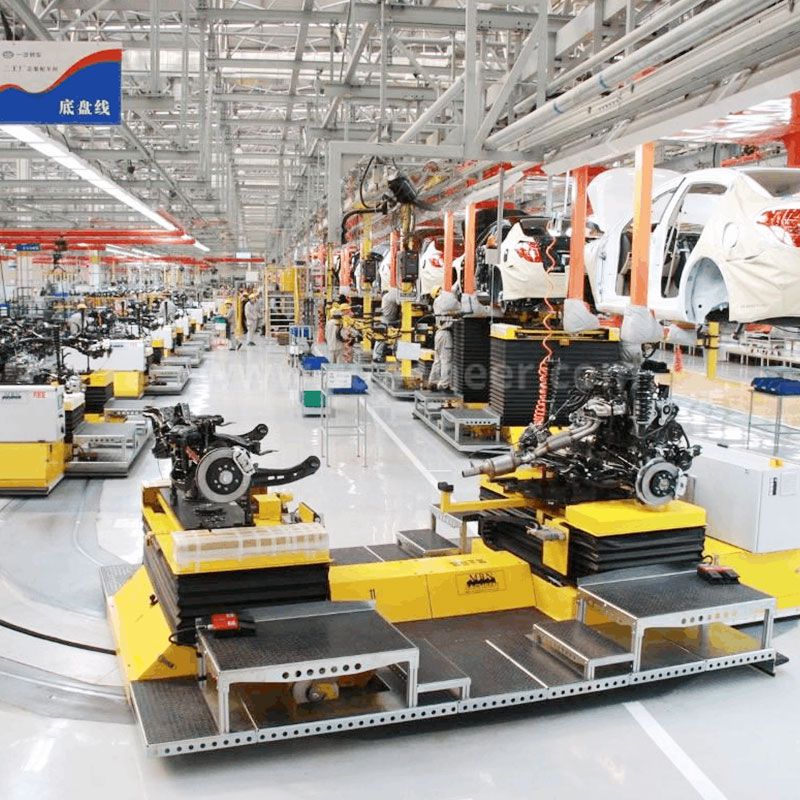

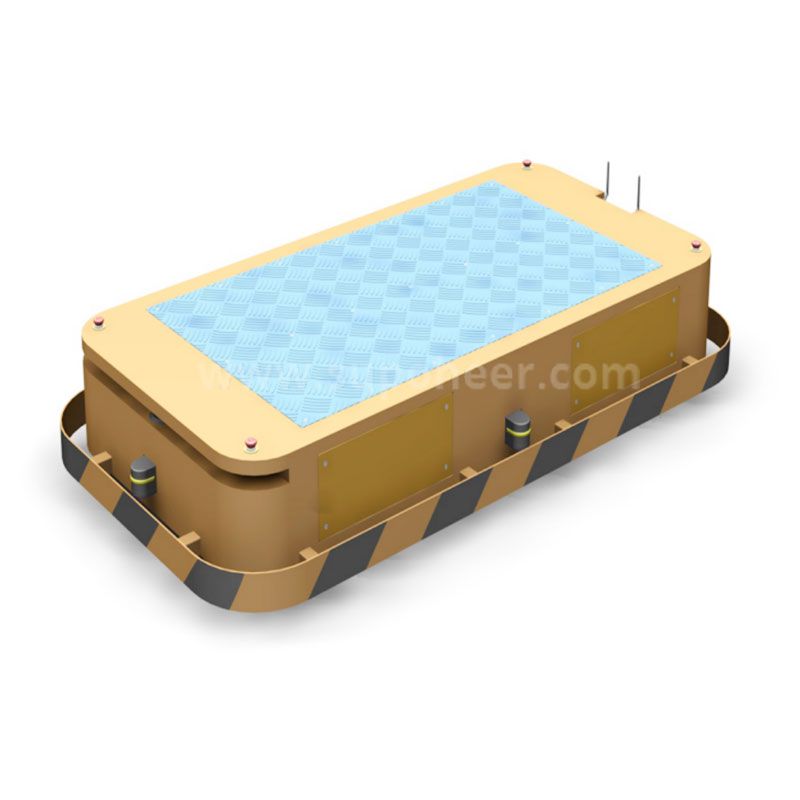

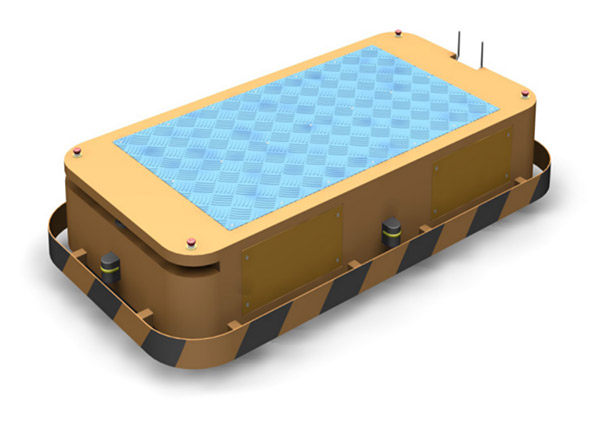

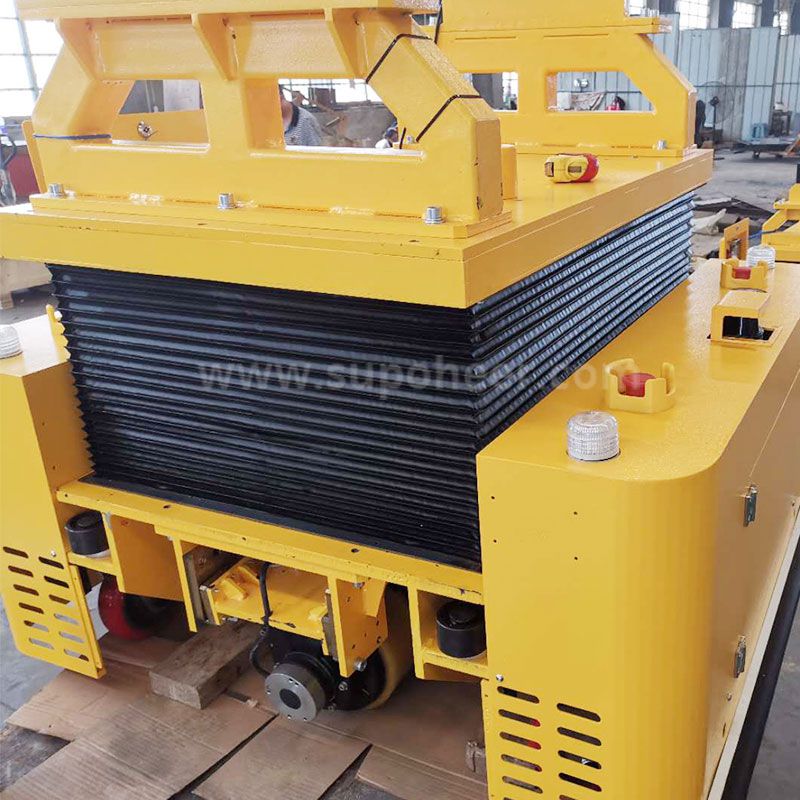

Two-way knapsack AGV adopts a load-bearing body structure, which can be used to support the workpiece and can be driven in both directions to realize easy handling of goods in various workshops or stations. A plurality of backpack-type AGVs can be used together to form an assembly line instead of an assembly line to form a flexible production line.

Features

1. Two-way operation, can carry 500KG~3000KG goods

2. Carrying materials, easy handling of goods in various workshops or stations

3. Equipped with magnetic navigation landmarks for site docking

4. Safety protection is more in place, 270° obstacle avoidance security

Product Technical Parameters
