CMA-25 Mecanum Wheel

The CMA series Mecanum Wheel provides a maximum load capacity of 4500 kg while maintaining a high standard of accuracy. The use of patented integrated wheel hub molding technology maximizes the mechanical properties of the material.

Share:
Product Description

The CMA series Mecanum Wheel provides a maximum load capacity of 4500 kg while maintaining a high standard of accuracy. The use of patented integrated wheel hub molding technology maximizes the mechanical properties of the material. CMA's full range of products are designed with rolling bearings, and the surface of the driven wheel is made of polyurethane, which has good performance in stability, quietness, reliability, and omnidirectionality, and can adapt to indoor and outdoor applications.

Characteristic

The wheel hub is integrally formed, high strength,

High rigidity rolling bearing design

Load capacity covers 0~4500kg industrial grade quality


CMA-25 Mecanum Wheel

CMA-25 Mecanum Wheel

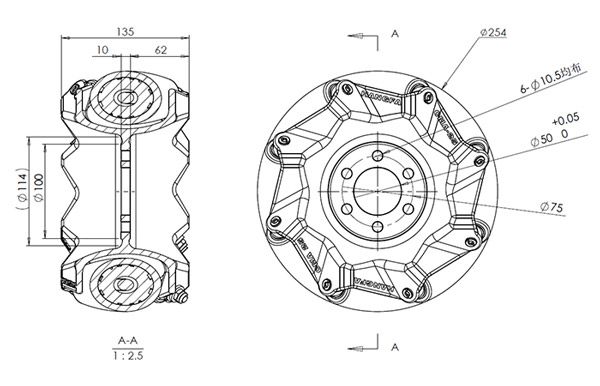

Dimensions

Length:254mm
Number of side wheels:8
Width:135mm
Wheel surface treatment:double-layer   high temperature baking
Flange thickness:10mm
Inner diameter of flange cavity:114mm
Self weight:12.5Kg
Flange screw:6-M10 bolt
Wheel Material:Polyurethane
Bearing type:Rolling bearing
Connection form:Flange
Flange diameter:100mm
Typical center hole:50mm
Load capacity:400Kg


Divided into two models of left (CMA-25-L) and right (CMA-25-R) rotation
